23 AWG (0.55mm) 4 PAIR
- Conductor: Solid Bare Copper
- Rip Cord: Nylon
- Drain wire: TC
- Rated Voltage：300V
- Operating Temperature Range：- 20°C ~75°C
- UL 444, ANSI/TIA 568.2-D, ISO/IEC 11801
- IEE 802.3bt FT4/FT6
- EU RoHS 2011/65 EU Compliant
| Prolink Part | AWG Size | Strands No. | Type | Insulation | Jacket | Shield |
| CAT6R | 23 AWG | Solid | UTP | HDPE | PVC | / |
| CAT6SHR | 23 AWG | Solid | F/UTP | HDPE | PVC | AL foil |
| CAT6P | 23 AWG | Solid | UTP | FEP | CMP PVC | / |
| CAT6SHP | 23 AWG | Solid | F/UTP | FEP | CMP PVC | AL foil |
| CAT6DB | 23 AWG | Solid | UTP | HDPE | LLDPE | Gel Filled/PE Tape |
| CAT6SHDB | 23 AWG | Solid | F/UTP | HDPE | LLDPE | AL foil PE Tape |

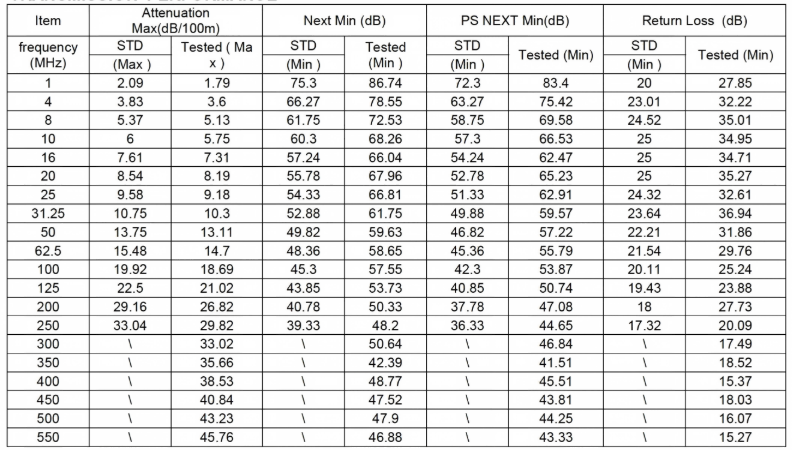

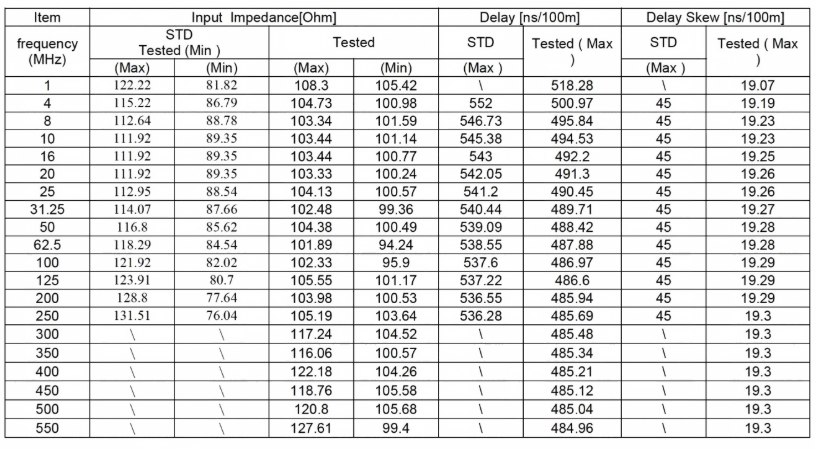

TRANSMISSION PERFORMANCE
* Values above 250 MHz are information only
