Standard :
- DIN VDE 0816
- Zero halogen, non-corrosive gases: IEC 60754-2, DIN EN 50267
- Flame retardant：IEC 60332-1-2, DIN EN 60332-1-2
- Fire retardant：IEC 60332-3-24, DIN EN 60332-3-24
- Smoke density: IEC 61034, DIN EN 61034（LSZH）

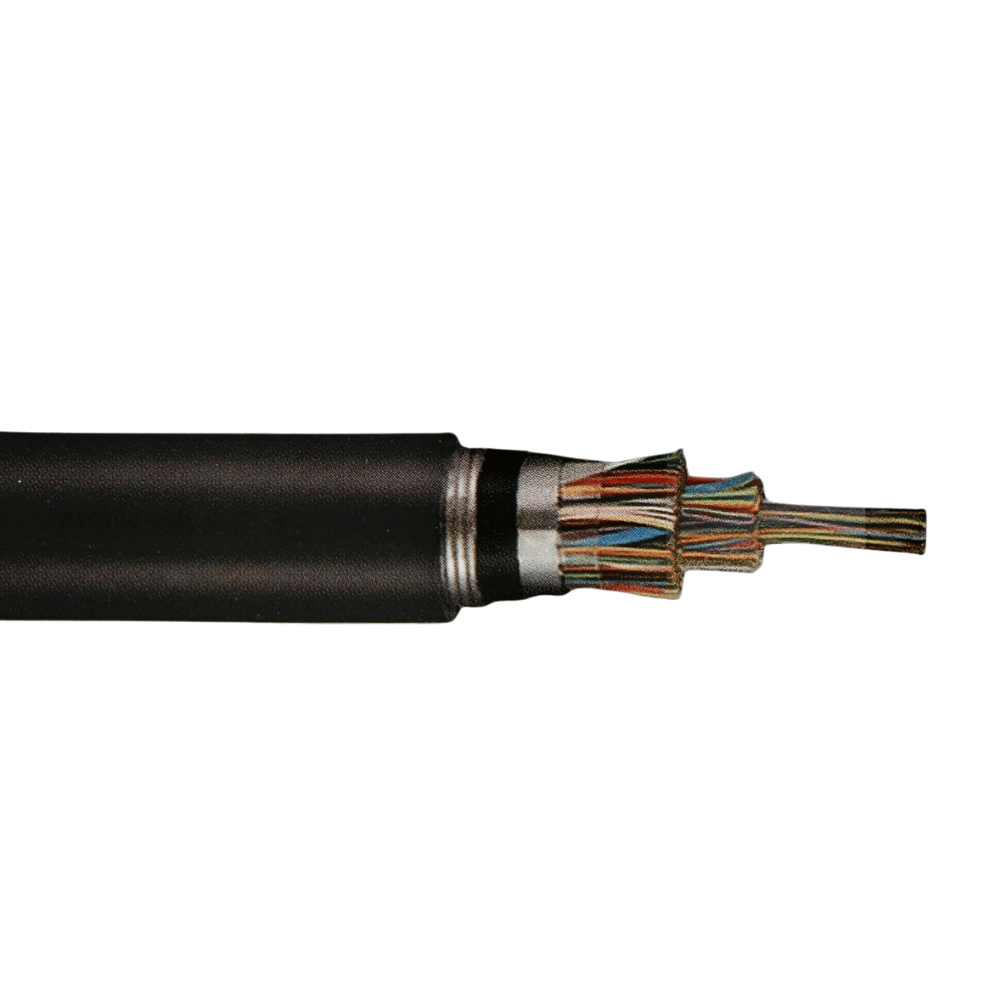

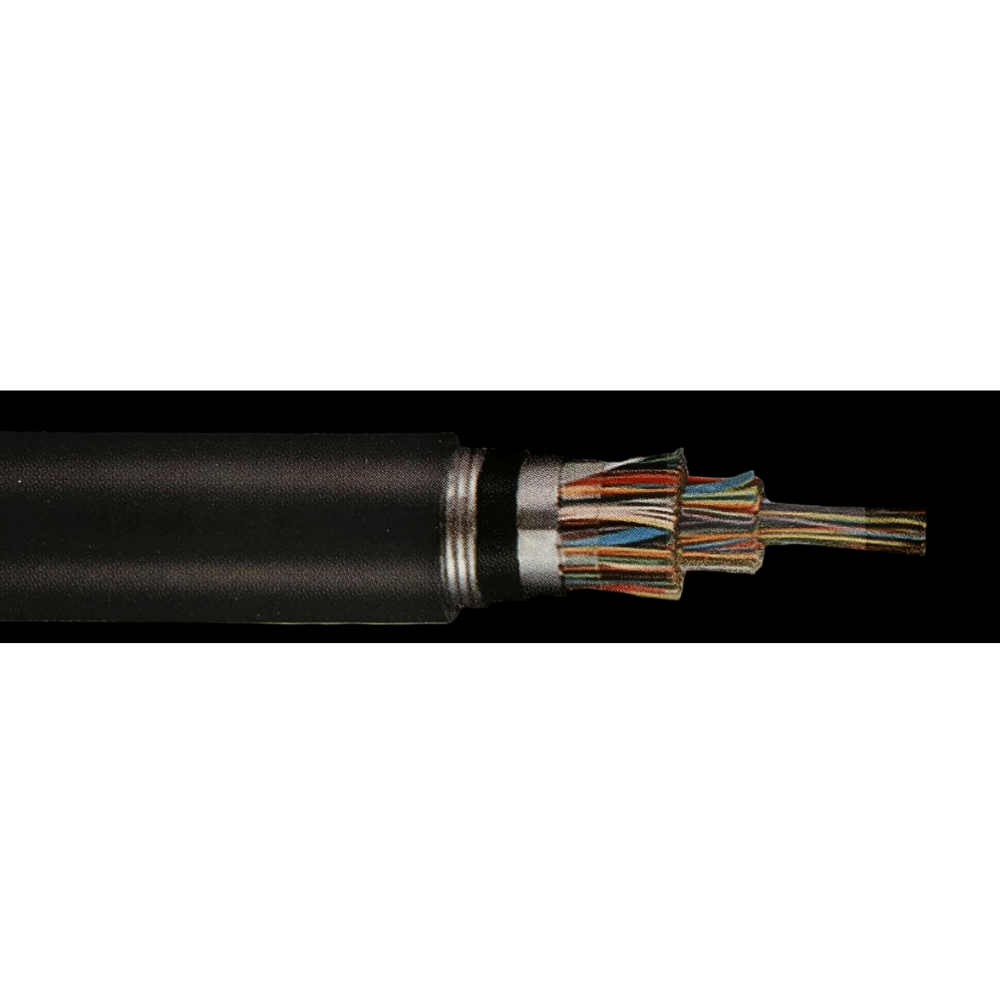

Schematic:
Construction :
- Conductor Material: Solid Copper
- Conductor diameter (mm): 0.40 / 0.50 / 0.60 / 0.70 / 0.80 / 0.90
- Insulation Material: PVC
- Insulation Material: LSZH / PVC
- Core: Filled with oil and grease
- Lapping: Plastic foil
- Shield: Tinned drain wire; plastic-laminated aluminium foil
- Sheath: PE / PVC
- Armor / Screen: Single steel tape armor
- Outer sheath: PE/PVC-FR; Termite protected; Colour: black RAL 9005
| Dimension | Sheath Thickness | Diameter | Cable Weight | Copper Index |
| mm | mm | kg/km | kg/km | |
| 4×2×0.8 | 1.8 | 13.5 | 225 | 81 |
| 8×2×0.8 | 1.8 | 16.5 | 315 | 121 |
| 12×2×0.8 | 1.8 | 17.0 | 365 | 162 |
| 16×2×0.8 | 1.8 | 18.0 | 430 | 203 |
| 20×2×0.8 | 1.8 | 20.0 | 510 | 280 |
| 32×2×0.8 | 2.0 | 25.0 | 770 | 358 |
| 40×2×0.8 | 2.0 | 26.5 | 880 | 440 |
| … |
This specification is available for up to 2400 pairs*.
Electrical Properties:
- (Conductor) loop resistance max. ：73.2 Ω/km
- Insulation resistance min. ：100 MΩ x km
- Test voltage core-core：500 V 50 Hz 1 min
- Test voltage core-screen： 2000 V 50 Hz 1 min
- Peak operating voltage：225 V
- Temperature range moved：-5°C to +50°C
- Temperature range static：-30°C to +70°C
- Minimum bending radius： 7.5 x diameter
