Standard :

• DIN VDE 0815
• Zero halogen, non-corrosive gases: IEC 60754-2, DIN EN 50267
• Flame retardant：IEC 60332-1-2, DIN EN 60332-1-2
• EIA/TIA-568.2-D
• ISO/IEC 11801-1
• IEC 61156-5
• UL 444
• CSA 22.2 No.214
• RoHS Compliant

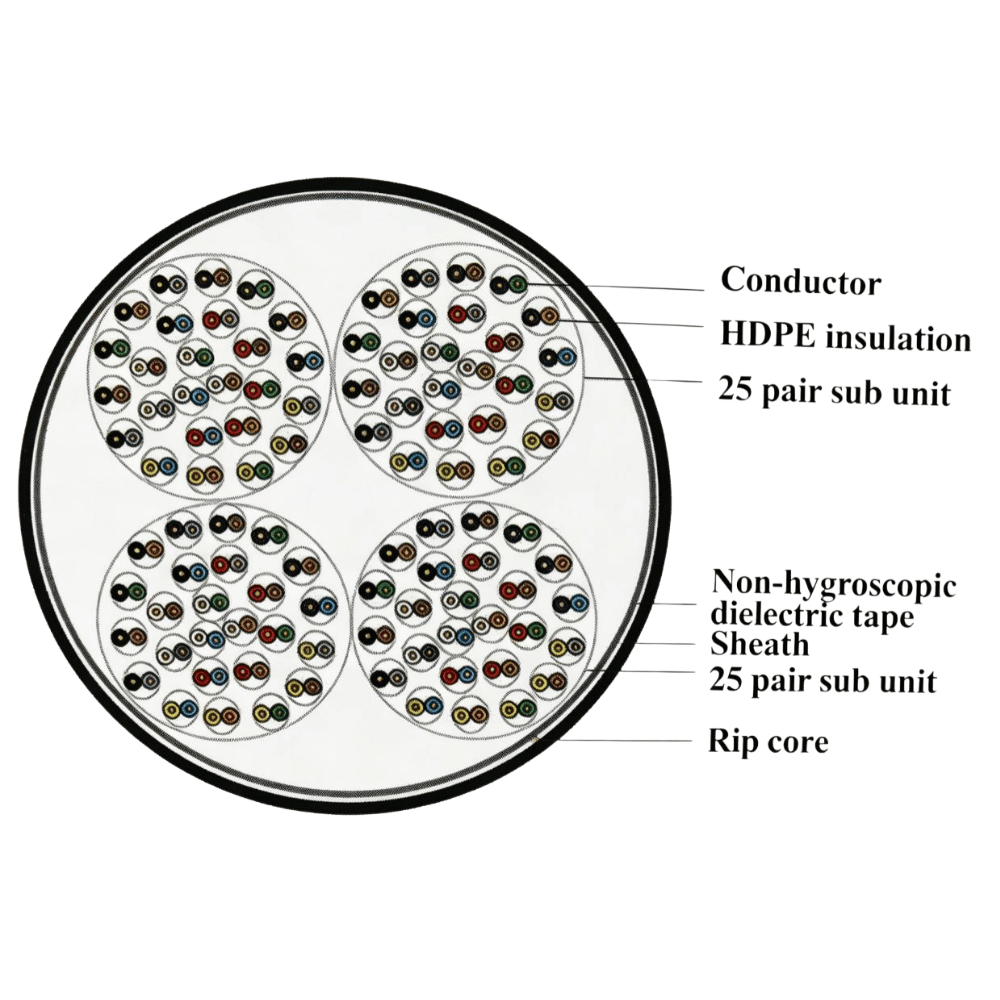

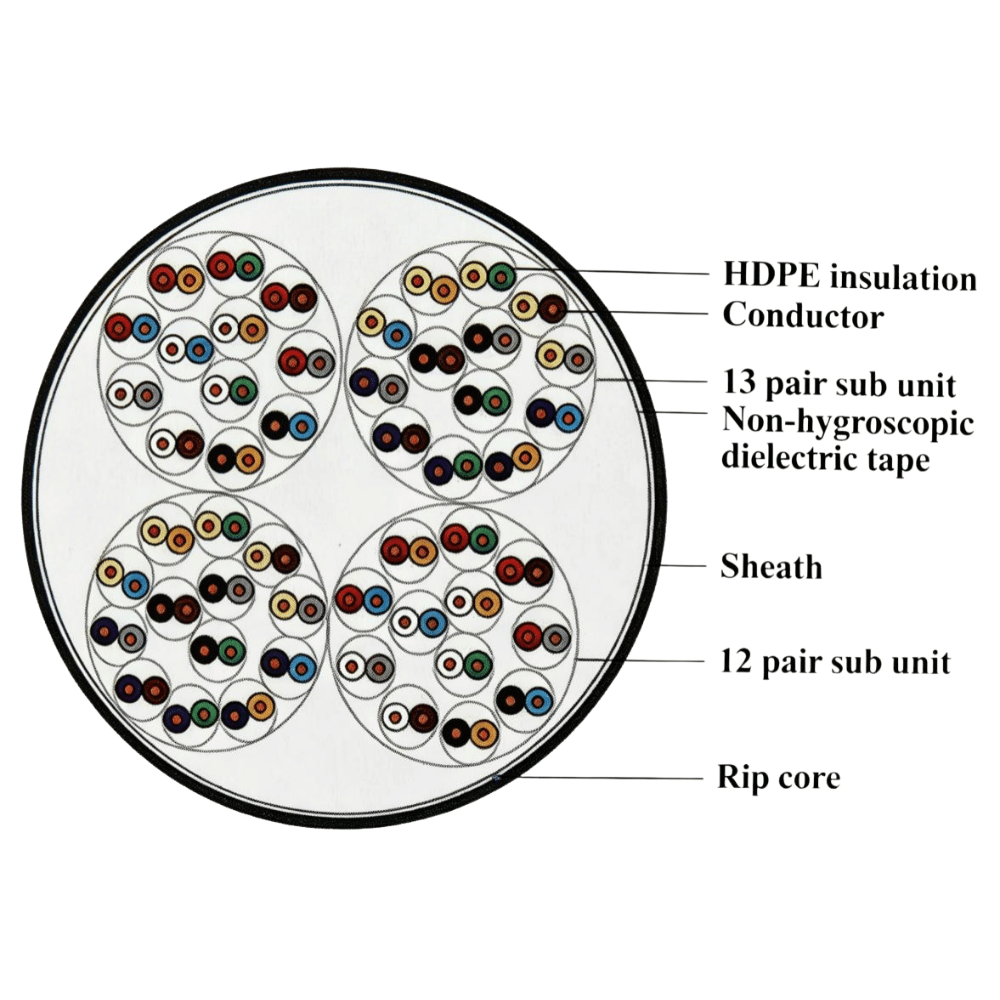

Schematic:

Construction :

• Cable Construction：24 AWG (0.48mm)
• Conductor Material: Solid Bare Copper
• Insulating Material: HDPE
• Number of Pairs (Insulation)：50 Pairs / 100 Pairs
• Shield: Non-hygroscopic dielectric tape
• Jacket Material: PE
• Rip Cord: Yes

Electrical Properties:

• Operating Temp: -20℃~ +75℃
• Voltage Rating: ≤300 Volt
• Test Voltage: 2.5 KV DC
