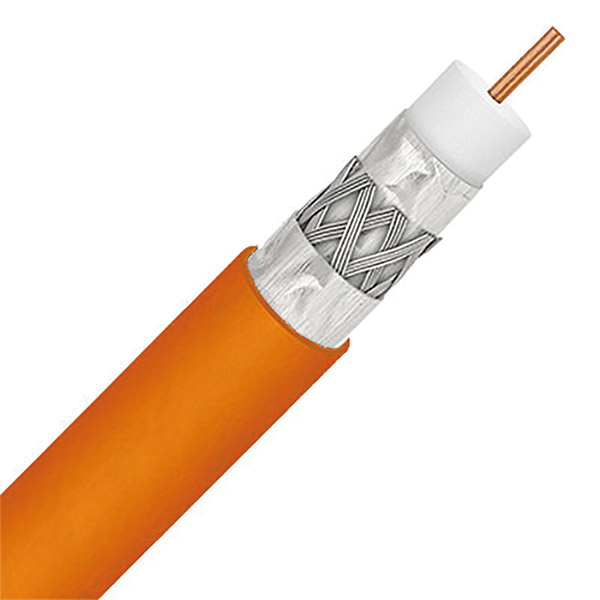

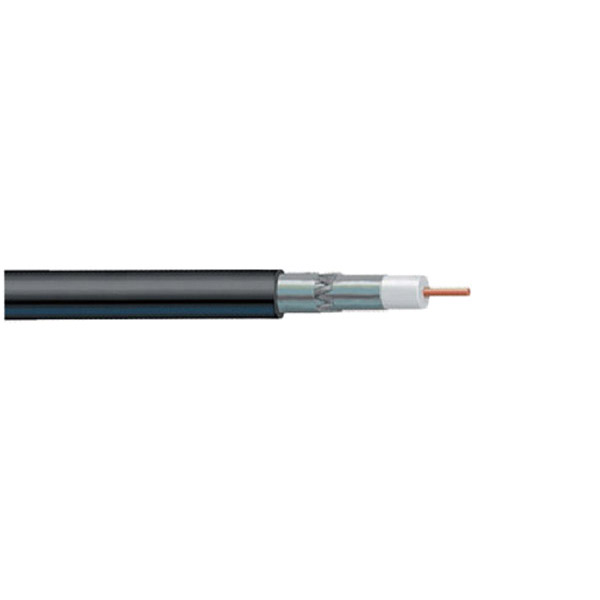

Coaxial Cable RG11

Application

For indoor installation as well as in industrial areas in conduits and cable ducts, for transmission of high-frequency signals and power.

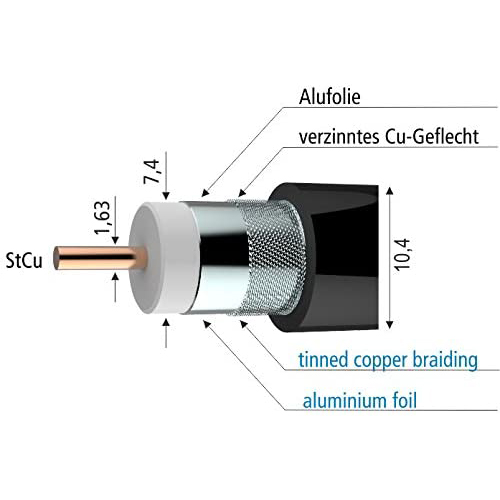

Specification/Standard                       Adapted to US Standard MIL – C – 17

Conductor material                             Stranded tinned copper

Core insulation material                      Polyethylene ( Dielectricum )

Sheathing material                             (PVC) /PE or FRNC

Screen material                                   Bare copper braiding

Temperature range in motion            From -5°C  to  +70°C

Frequency range                               F max         [GHz]              3.0

Insulation resistance                        R iso          [MOhm/km]        10000

Attenuation                                    100 MHz      [dB / 100m]            7.7

Capacitance                                    C            [NF / km]              67

Rel. velocity ratio                            V rel          %                  67.0

Electric strength                             50Hz          [KV]eff              10

Bending Radius                              min.           [mm]                 50

Operating peak voltage                                   [KV]                  5.2
