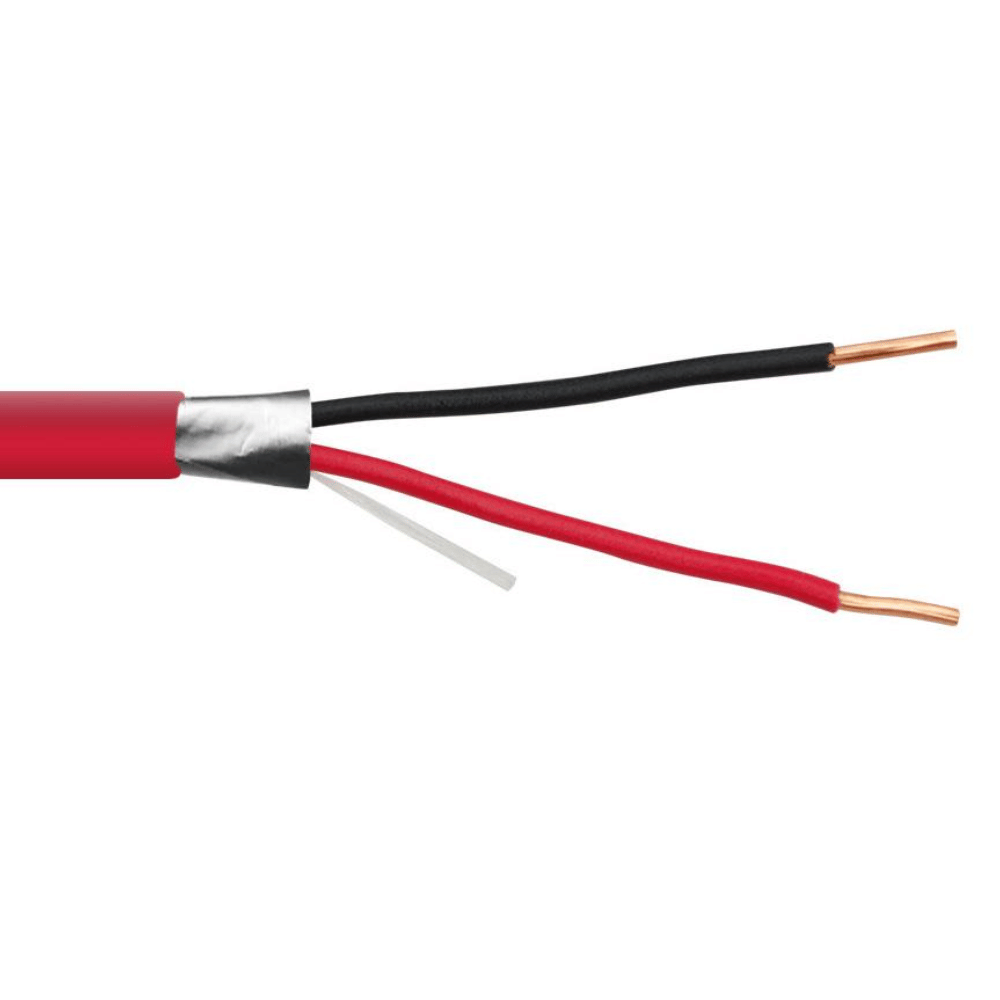

- Conductor: Stranded Bare Copper
- Insulation： PVC with FPLR Rating
- Shield: AL Foil
- Drain Wire: TC
- Jacket: PVC with FPLR Rating
- Rip Cord: Nylon
- Rated Voltage: 300V
- Operating Temperature Range：- 20°C ~75°C
- Certificates: UL & ETL
| Item No. | AWG Size | Conductors No. | of Strands | Insulation Thickness in Mils | Jacket Thickness in Mils | O.D. (Inch) |
| FA1202SHR | 12 | 2 | Solid | 10 | 15 | 0.25 |
| FA1402SHR | 14 | 2 | Solid | 10 | 15 | 0.22 |
| FA1404SHR | 14 | 4 | Solid | 10 | 15 | 0.25 |
| FA1602SHR | 16 | 2 | Solid | 10 | 15 | 0.18 |
| FA1604SHR | 16 | 4 | Solid | 10 | 15 | 0.21 |
| FA1802SHR | 18 | 2 | Solid | 10 | 15 | 0.16 |
| FA1804SHR | 18 | 4 | Solid | 10 | 15 | 0.18 |
| FA1806SHR | 18 | 6 | Solid | 10 | 15 | 0.22 |
| FA1808SHR | 18 | 8 | Solid | 10 | 15 | 0.24 |
