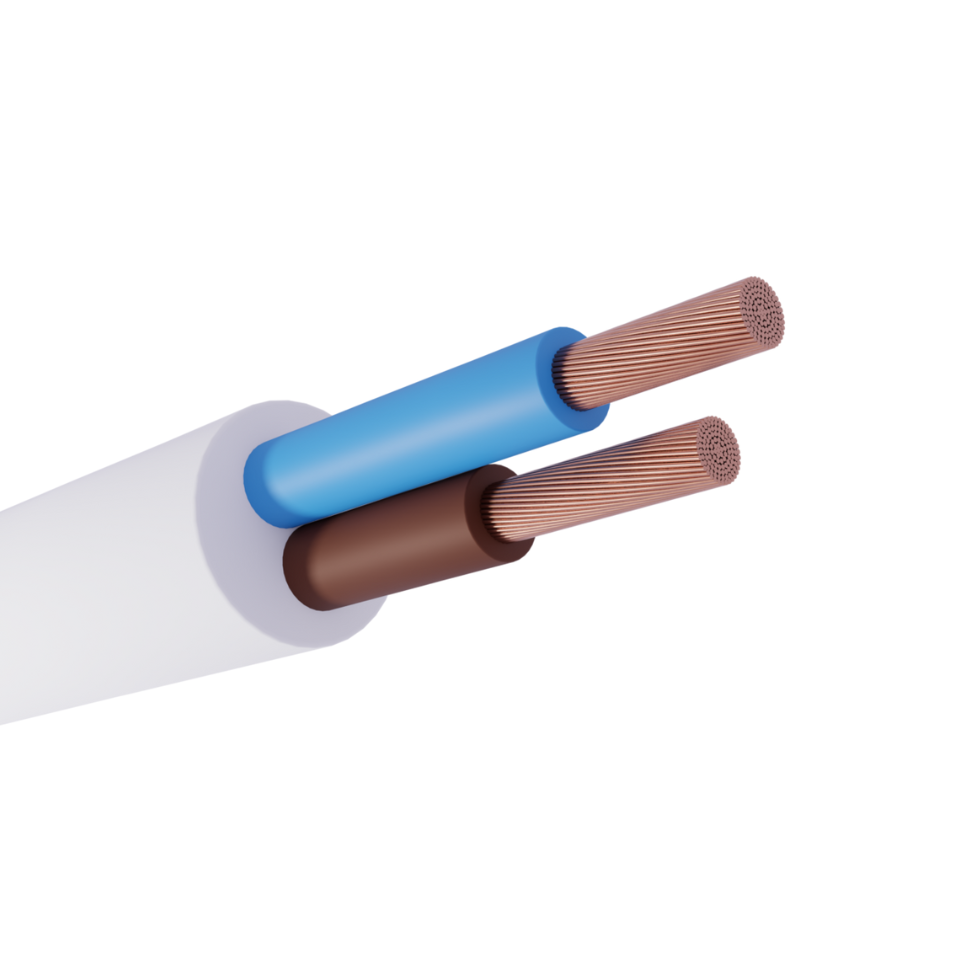

H03VV-F is a flexible round power cable used for power connections in low-power household appliances and portable devices, featuring high flexibility and flame-retardant PVC sheath, ideal for indoor light-duty mobile applications.

Conductor material         Fine-stranded bare copper, class 6

Insulation                      PVC

outer sheath                  PVC

Standards                     DIN VDE 0285-525-2-11

HD 21.5 S3 +A1+A2

DIN EN 60228 class 5 (construction)

HD 308 S2 (core identification)

ÖVE / ÖNORM E8241 (HD21)

Nominal voltage Uo/U   300 / 300 Volt

Test voltage                    2000

Temperature range        -5°C till +70°C

Operating temperature    150 °C

Short circuit time            5

Bending radius              6

Flammability                  EN 60332-1-2

Application:

Suitable for dry locations for connections of portable electrical appliances

submitted to weak mechanical strength, like radio sets and lighting fittings,

but not for heating devices.
