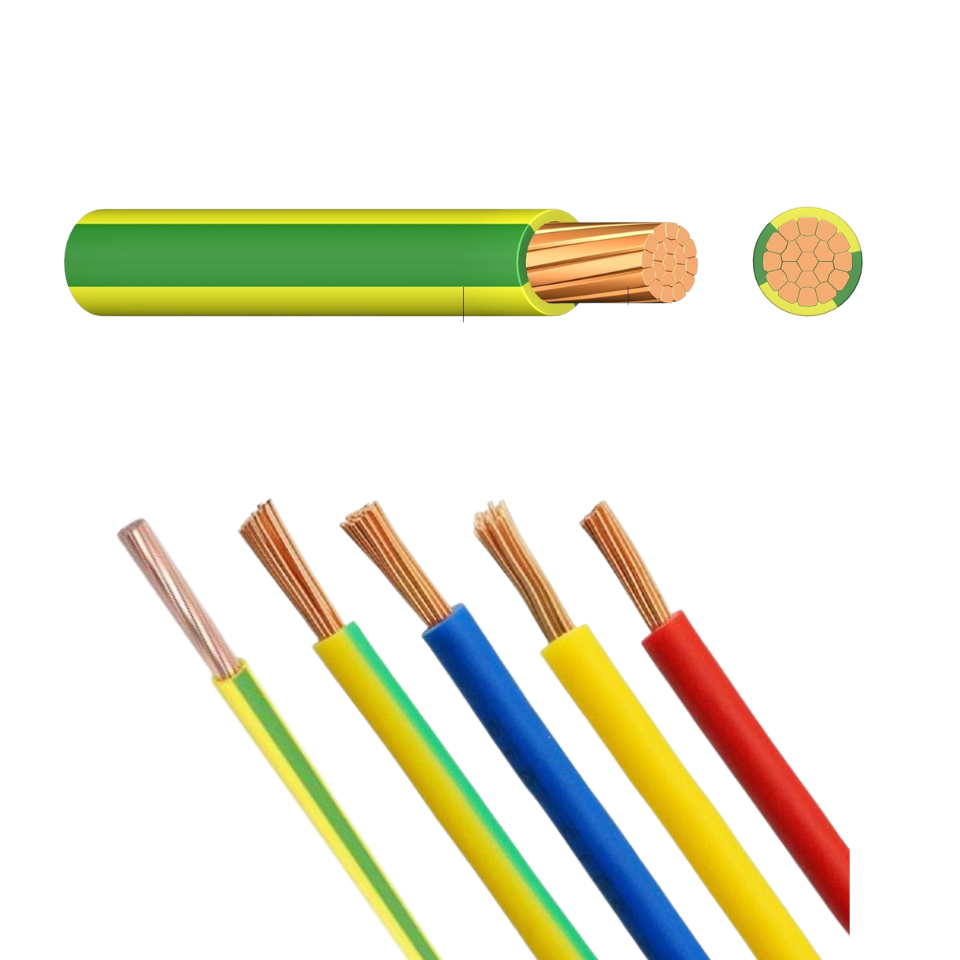

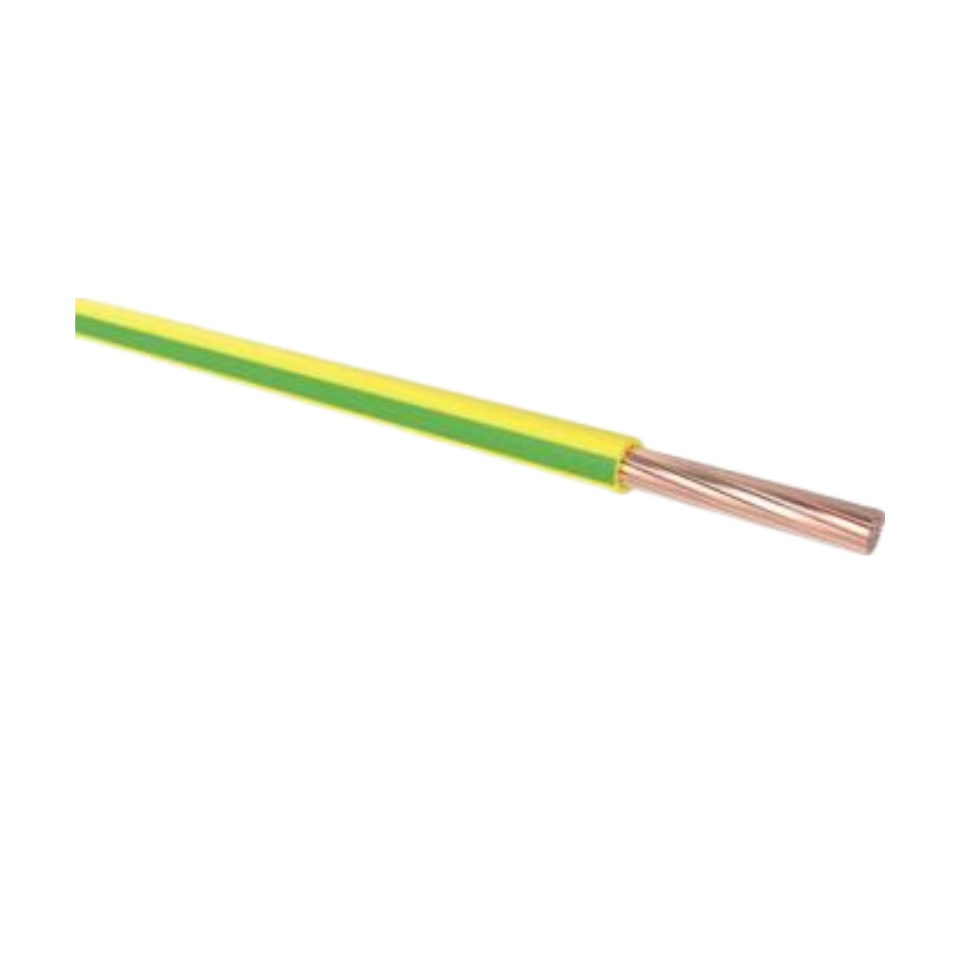

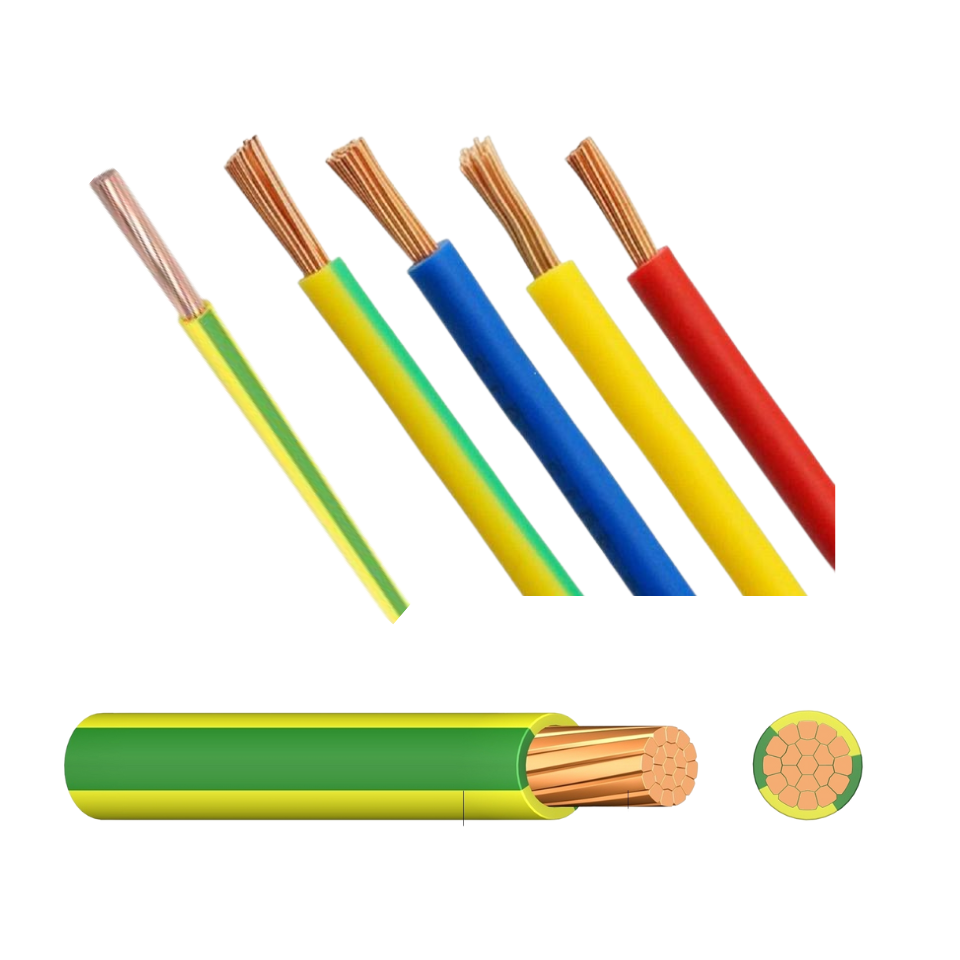

H07V-R is a single-core rigid power cable used for fixed low-voltage electrical installations (e.g., building wiring, control panels), featuring Class 2 stranded copper conductors and PVC insulation, suitable for dry or damp indoor environments.
Standard:EN 50525-2-31
Ratedvoltage:450/700 V (Uo/U)
operatingtemperature:-30℃~ 70 ℃
CPRstandard：EN60332，EN50575
| Nominal cross-section (mm²) | Core colours | Max. conductor resistance (Ω/km) | Total weight (kg/km) approx. | Total weight (kg/km) appr. |
| 6 | bk,bu, gnye | 3.08 | 4.4 | 64 |
| 10 | bk, bn, bu, gnye | 1.83 | 6.0 | 120 |
| 16 | bk, bn, bu, gnye | 1.15 | 6.9 | 170 |
| 25 | bk, bn, bu, gnye | 0.727 | 8.9 | 270 |
| 35 | bk, bn, bu, gnye | 0.524 | 9.8 | 370 |
| 50 | bk,bu, gnye | 0.387 | 11.2 | 515 |
| 70 | bk,bu, gnye | 0.268 | 13.3 | 710 |
| 95 | bk,gnye | 0.193 | 15.0 | 955 |
| 120 | bk,bu, gnye | 0.153 | 16.6 | 1205 |
| 150 | bk,gnye | 0.124 | 18.0 | 1480 |
| 185 | bk,gnye | 0.0991 | 21.4 | 1741 |
| 240 | bk,gnye | 0.0754 | 24.4 | 2278 |
| 300 | bk,gnye | 0.0601 | 27.1 | 3050 |
