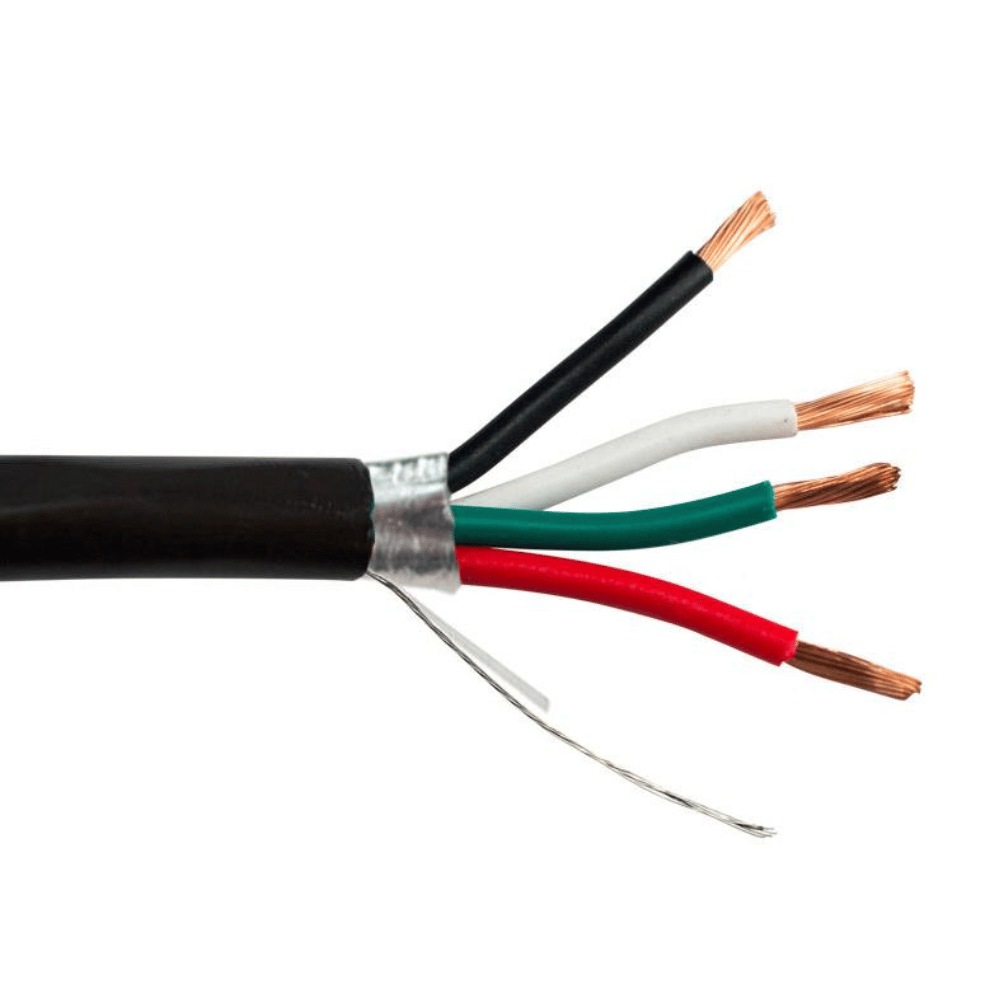

- Conductor: Stranded Bare Copper
- Insulation： PVC
- Jacket: LLDPE
- Screen: PE Tape Waterproof
- Shield: AL Foil
- Drain Wire: TC
- Rip Cord: Nylon
- Rated Voltage: 300V
- Operating Temperature Range：- 20°C ~75°C
- Certificates: UL & ETL
| Item No. | AWG Size | Conductors No. | Strands No. | Insulation Thickness (mm) | Jacket Thickness (mm) | O.D. (Inch) |
| SR1202SHDB | 12 | 2 | 19 | 0.36 | 0.8 | 8.5 |
| SR1402SHDB | 14 | 2 | 19 | 0.36 | 0.6 | 7.2 |
| SR1602SHDB | 16 | 2 | 19 | 0.33 | 0.6 | 6.3 |
| SR1802SHDB | 18 | 2 | 7 | 0.26 | 0.6 | 5.4 |
| SR1804SHDB | 18 | 4 | 7 | 0.26 | 0.6 | 6.2 |
| SR1806SHDB | 18 | 6 | 7 | 0.26 | 0.6 | 6.8 |
